Subvert the Grid: Forge Your Own Identity Blackhole
In a world of ever-increasing digital surveillance, protecting your privacy and anonymity isn’t just a luxury it’s a necessary act of self-defense. Whether you’re a security researcher, red team operative, geopolitically oppressed civilian, or a privacy advocate, mastering advanced techniques to obscure your network identity is not just beneficial it’s essential.
This in-depth guide combines the use of Tor, Stem, iptables, and Wireshark to build a hardened, anonymized routing setup. We’ll explore Python-based Tor circuit control, datagram analysis, firewall configuration, and real-time packet inspection using Wireshark.
What is Tor?

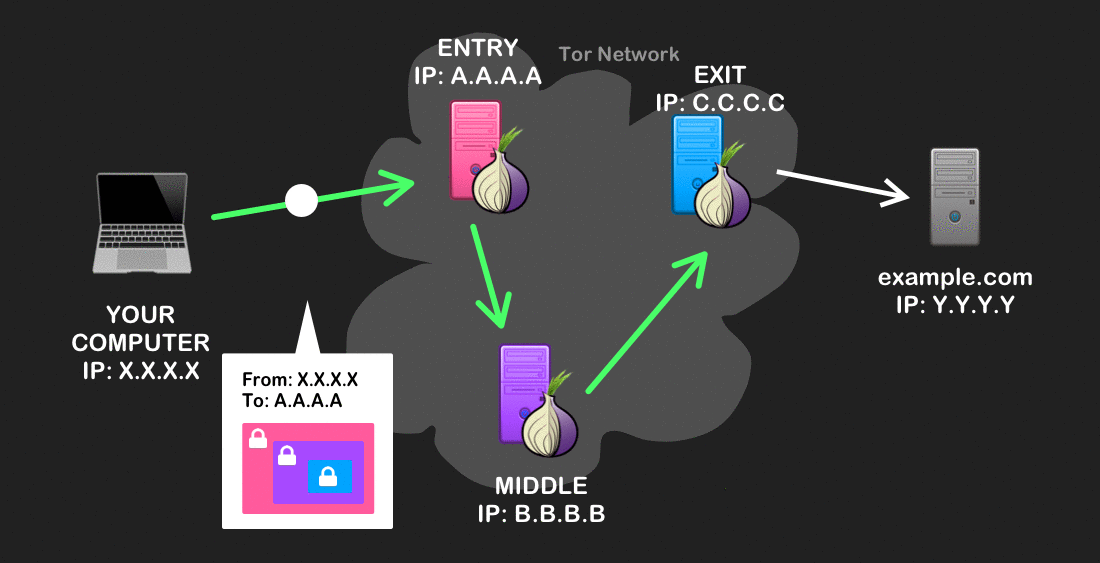

Tor (The Onion Router) anonymizes Internet traffic by routing it through a multi-node, encrypted circuit:
- Guard Node: Knows your IP address but not your destination.
- Middle Node: Adds further obfuscation without knowing source or destination.
- Exit Node: Connects to the target destination without knowing the origin.
Each Tor connection involves encapsulated cells that are decrypted layer by layer, preserving anonymity through layered encryption.

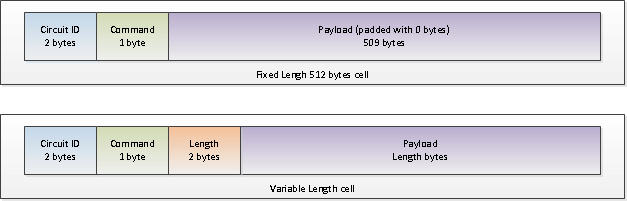

Tor Cell Structure & Datagram Anatomy
Tor traffic uses uniform, fixed-length 512-byte cells, which eliminates size-based fingerprinting:
- Relay Cells: Carry application data.
- Control Cells: Manage circuit states.
- Padding Cells: Obfuscate patterns.
Each TCP stream multiplexes circuits, and each circuit contains multiple streams. This nesting structure increases obfuscation.
Setting Up Tor + Python Requests
Step 1: Install Dependencies
sudo apt install tor
pip install requests[socks] stem
Step 2: Basic Tor IP Check
import requests
def get_tor_ip():
session = requests.Session()
session.proxies = {
'http': 'socks5h://127.0.0.1:9050',
'https': 'socks5h://127.0.0.1:9050'
}
ip = session.get('https://httpbin.org/ip').json()
print("[+] IP via Tor:", ip['origin'])
if __name__ == '__main__':
get_tor_ip()
Ensure your Tor daemon is running:
sudo service tor start
Advanced Circuit Control with Stem
Stem allows fine-grained control of Tor circuits, including on-demand identity rotation.
Step 1: Enable Tor ControlPort
Modify /etc/tor/torrc:
ControlPort 9051
CookieAuthentication 0
HashedControlPassword <your_hashed_password>
Restart Tor:
sudo systemctl restart tor
Generate password hash:
tor --hash-password your_password
Step 2: Rotating Circuits in Python
from stem import Signal
from stem.control import Controller
import time
def rotate_identity():
with Controller.from_port(port=9051) as controller:
controller.authenticate(password='your_password')
controller.signal(Signal.NEWNYM)
print("[+] Requested new identity")
if __name__ == '__main__':
while True:
rotate_identity()
time.sleep(600) # rotate every 10 minutes
This script periodically signals Tor to build a new circuit, rotating your exit IP.
Enforcing Tor-Only Routing via iptables
Block all outbound connections unless routed through Tor to prevent leaks.
Example Setup:
# Flush existing rules
iptables -F
iptables -t nat -F
# Allow loopback
iptables -A OUTPUT -o lo -j ACCEPT
# Allow Tor process to connect anywhere
iptables -A OUTPUT -m owner --uid-owner debian-tor -j ACCEPT
# Redirect other traffic to Tor
iptables -t nat -A OUTPUT -p tcp --syn -j REDIRECT --to-ports 9040
# Block everything else
iptables -A OUTPUT -j REJECT
# Block Torrent providers
iptables -A FORWARD -m string --string "BitTorrent" --algo bm --to 65535 -j DROP
iptables -A FORWARD -m string --string "BitTorrent protocol" --algo bm --to 65535 -j DROP
iptables -A FORWARD -m string --string "peer_id=" --algo bm --to 65535 -j DROP
iptables -A FORWARD -m string --string ".torrent" --algo bm --to 65535 -j DROP
iptables -A FORWARD -m string --string "announce.php?passkey=" --algo bm --to 65535 -j DROP
iptables -A FORWARD -m string --string "torrent" --algo bm --to 65535 -j DROP
iptables -A FORWARD -m string --string "announce" --algo bm --to 65535 -j DROP
iptables -A FORWARD -m string --string "info_hash" --algo bm --to 65535 -j DROP
Replace
debian-torwith your system’s Tor user if different.
Disabling IPV6 to prevent DNS Leaks
Example Setup:
sudo net.ipv6.conf.all.disable_ipv6 = 1
sudo net.ipv6.conf.default.disable_ipv6 = 1
Deep Packet Analysis with Wireshark
Filters for Tor:
tcp.port == 9050 || tcp.port == 9001 || tcp.port == 443
-
9050 - Default SOCKS proxy port.
-
9001 - Default OR (Onion Routing) port for Tor relays.
-
443 - Tor can use this port to blend in with HTTPS traffic.
What You’ll See:
- TLS handshakes to Guard/Exit nodes.
- Repeated 512-byte TCP segments (Tor cells).
- Uniform stream timing (Tor’s built-in obfuscation).
- Absence of DNS leaks
- Multiplexed TCP streams
Recognizing Tor Patterns:
| Feature | Tor | HTTPS |
|---|---|---|
| Payload Size | 512 bytes | Variable |
| Multiplexing | Yes (Circuits) | No |
| Timing Jitter | High | Normal |
| Padding | Consistent | Rare |
| DNS Requests | Internal(Safe) | Exposed |
Use the Follow TCP Stream feature to inspect encrypted payloads. While you can’t decrypt it, structure analysis is still possible.
Full Example: IP Rotation + Proxy Request
import requests
from stem import Signal
from stem.control import Controller
import time
session = requests.Session()
session.proxies = {
'http': 'socks5h://127.0.0.1:9050',
'https': 'socks5h://127.0.0.1:9050'
}
def rotate_identity():
with Controller.from_port(port=9051) as c:
c.authenticate(password='your_password')
c.signal(Signal.NEWNYM)
print("[+] Identity rotated.")
for _ in range(3):
rotate_identity()
time.sleep(5)
print(session.get("http://httpbin.org/ip").text)
time.sleep(10)
OPSEC Guidelines
- Use sandboxed VMs or Tails OS
- Clear cookies, WebGL, Canvas, etc.
- Use multiple chains (VPN → Tor or Tor → VPN)
- Never authenticate personal accounts over Tor
“Anonymity isn’t magic it’s meticulous discipline.”
Real-World Applications
- Threat Intelligence Gathering
- Anonymous Reporting & Journalism
- C2 Infrastructure in Red Team Ops
- Research in Hostile Environments
- Research in restricted geopolitical zones
