Reversing ISP Router Firmware [Part 1]

November 27, 2021

A few days ago i decided that i want to reverse engineer one of my ISP’s routers, specifically the ZTE Router Models. Why would i do that? Well because it’s fun messing around with custom firmwares.

Disclaimer

This is strictly for educational purposes ONLY and not to be used for conducting any illegal activities. I hold no responsibility for misuse of this information.

Requirements

Router Firmware [ ZTE H108NS ]
A Linux/Unix Computer or Virtual Machine
An installed copy of binwalk
Optional: John the Reaper, Hashcat

Downloading the Firmware

First, we need to download the firmware to begin reverse engineering it.

Download Link : ZTE-H108NS

Digging into the Firmware

Now that we have downloaded it let’s make a workplace for it :

mkdir -p /opt/firmware/
cp /home/<user>/Downloads/ZTE_H108NS_CONNX_PSTN_V107u_ZRD_GR2_A68_20150720_tclinux.rar .
unrar x ZTE_H108NS_CONNX_PSTN_V107u_ZRD_GR2_A68_20150720_tclinux.rar

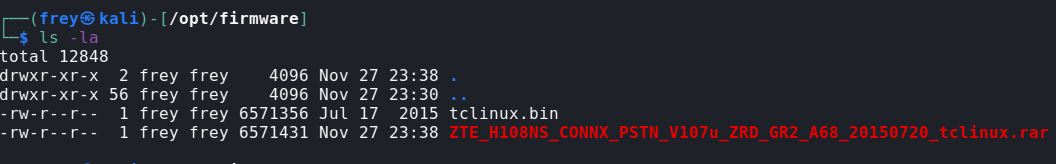

The unzipped files should be : tclinux.bin

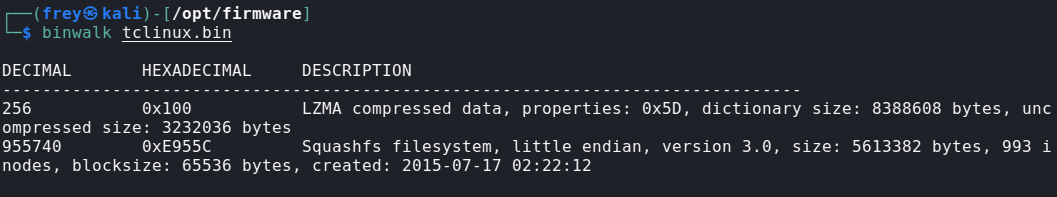

First things first we need to run binwalk on our .bin firmware image:

As you can see, this image consists of two parts: An LZMA compressed file (compare to a .zip or .rar file) and a SquashFS Filesystem, common for compressing a Linux or Unix OS into small space. It’s important to make a note that the LZMA file starts at byte 256 (or 0x100 in hexadecimal). While the SquashFS filesystem is located at byte 955740 (or 0xE955C in hexadecimal).

Getting that SquashFS

Before we get the SquasFS we need to install sasquatch, so we can automate the procedure by combining it with binwalk :

   1. git clone https://github.com/devttys0/sasquatch.git
   2. sudo apt-get install build-essential liblzma-dev liblzo2-dev zlib1g-dev
   3. sudo ./build.sh

When everything is ready, we can finally execute binwalk with the help of sasquatch.

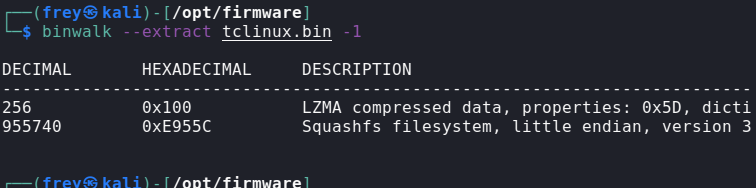

Executing the command : binwalk --extract tclinux.bin -1

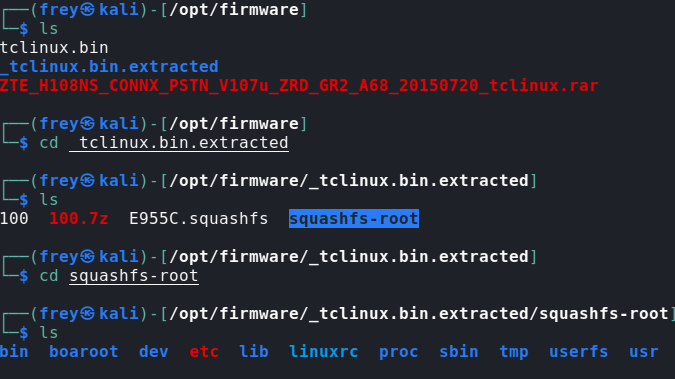

And finally we can see that we have successfully extracted the squashFS system

A little bit explanation on what does the command argument -1 does on binwalk, the specific argument allows us to extract every symlink that it’s supposed to be inside of the squashFS system. By default it does not extract the symlinked files for obvious reasons.

And now what? Is there something else there?

Now that you have pretty much full access to the whole squasFS system you can tinker it as you please, what i would personally do in my case is to look for default credentials on services, or files and then i would setup a testing environment with firmadyne and emulate the Router’s firmware in order to find vulnerabilities, or bypass restrictions. Υou can also use the mod-firmware-kit to re-pack the whole image file with a backdoor or tweak it as you like.

Resources for both of the tools :

Firmadyne : Firmadyne
Firmware-Mod-Kit : Firmware-Mod-Kit

Summary

It was fun reversing this one, as it was easy and straightforward, on Part[2] we will focus on how we can setup a testing environment with firmadyne and emulate our extracted firmware.

Frey
