Reversing ISP Router Firmware [Part 2]
It’s been a year since I have posted Part[ 1 ] of the Reverse Engineering series mainly because Iam in the military; oh well anyway, Part[ 2 ] will be focusing on emulating the firmware. We will be using some out of the box tools to make our lives and debugging easier. Note to the viewers Part[ 2 ] highlights the emulation therefore it’s assumed that every tool and firmware that is shown here is downloaded & installed.
Disclaimer
This is strictly for educational purposes ONLY and not to be used for conducting any illegal activities. I hold no responsibility for misuse of this information. i was questioned by my colleagues if i got permission from my ISP to Reverse Engineer their firmware well no duh; There’s no reason to ask for permission for a firmware version which is more likely outdated and deprecated since 2013 or so.
Requirements
- Router Firmware [ ZTE H108NS ]
- A Linux/Unix Computer or Virtual Machine
- An installed copy of
FirmAE
What is FirmAE
FirmAE is a fully-automated framework that performs emulation and vulnerability analysis. FirmAE significantly increases the emulation success rate (From Firmadyne’s 16.28% to 79.36%) with five arbitration techniques.
Download Link : FirmAE
Using FirmAE to perform emulation
What we need to do first is use FirmAE to check if we can emulate the firmware, to do that :
1. cd /opt/FirmAE
2. sudo ./run.sh -r ZTE tclinux.bin
As we can see the emulation works perfectly and we’re granted with a Network Interface which leads to a web page asking us for Basic Auth credentials. Therefore we’re one step closer viewing the router web panel. Before we can do that we need the credentials but we don’t have them so we need to dig a little deeper into the firmware from the inside in order to uncover or better; Manipulate some things to get past the Basic Auth.
Debugging the Firmware
We have emulated the firmware but now we need to debug it, how are we gonna do that; Well FirmAE has another tool which can help us to directly connect to the current qemu session. What we need to do is list our qemu session, by default every qemu session is under /tmp/ directory so it won’t be hard to locate the number of the session.
Let’s execute the needed commands :

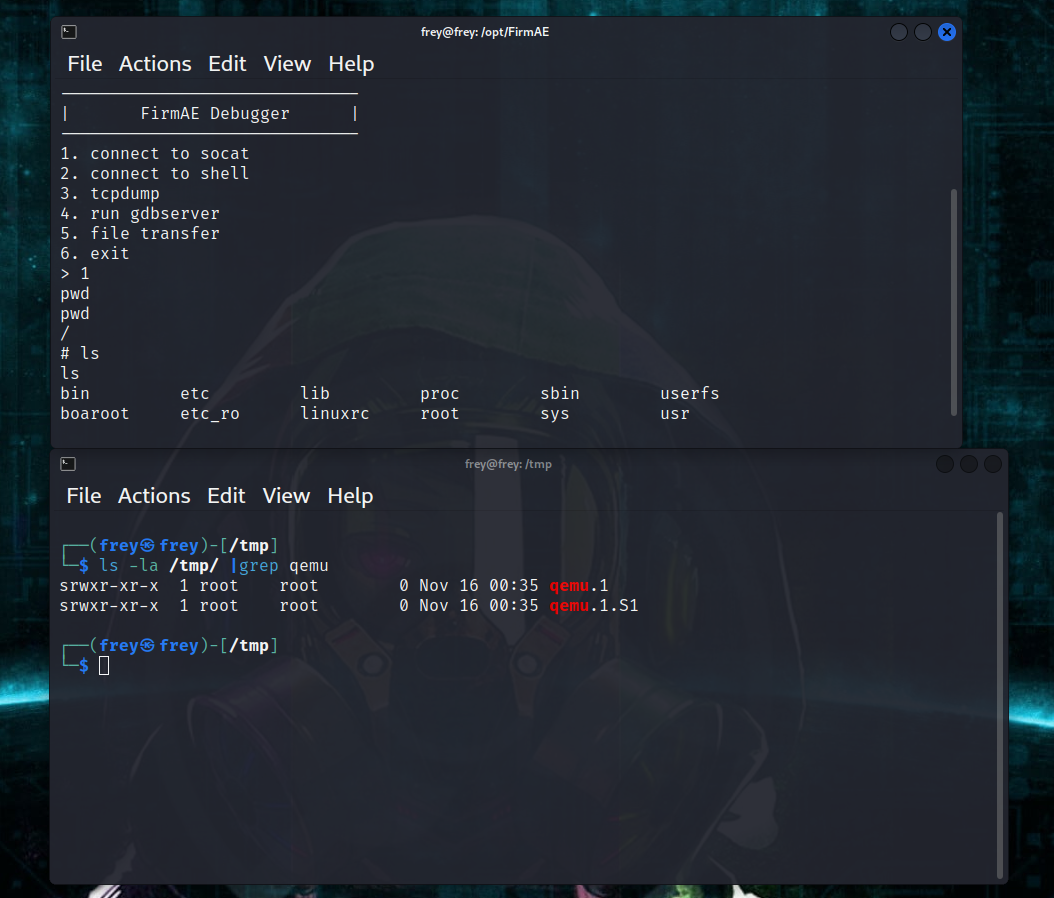

1. cd /opt/FirmAE/
2. ls -la /tmp/ |grep qemu
3. sudo ./debugger.py 1
In my case the qemu session is in number 1. After executing it by default the script will try to connect to the session with Netcat, but it will fail. In order to get a solid shell inside we need to choose the option Socat so input the number 1
And finally we have a /bin/sh shell inside
Debugging Romfile.cfg
Romfile.cfg is a piece of file that holds the basic configuration of the Router, latest firmwares encrypt this file on the runtime so third party operators would never be able to achieve reading the non encrypted version of it without having the original extracted firmware or a flash dump directly from the Router ROM. From our point of view the romfile.cfg is unencrypted and we can view the contents of it directly.

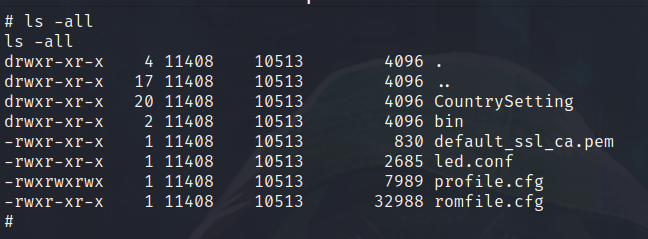

Theoritical point of view; Under the path of /userfs/romfile.cfg there’s our file, grepping the file and viewing it’s contents we can assume that the credentials embedded there, are the web panels basic auth credentials.
Command :
cat romfile.cfg |grep username
<Entry0 username="admin" web_passwd="poqv7069"
But testing them on the Basic Auth web panel of the router shows that they are incorrect which is kinda odd; Because clearly it states that the credentials are for web_passwd entry. Nevertheless after some time trying to make sense of it i tried to approach it with a different methodology. Instead we can just tweak some mechanisms to work for our advantage in order to access the router web portal without breaking the Basic Authentication module.
What is Βoa
Some information about boa, Boa is a discontinued since 2005 open-source small-footprint web server that is suitable for embedded applications. To simplify things up it’s just a web based client which serves basic content with minimal security policies.
Debugging Boa Configuration
Now that we’re inside the Router environment we can take a look at how Boa is being executed and what configuration does it parses, to do that we’re gonna list our current processes and grep through our way to locate Boa process.
On the router shell environment let’s execute the below command :

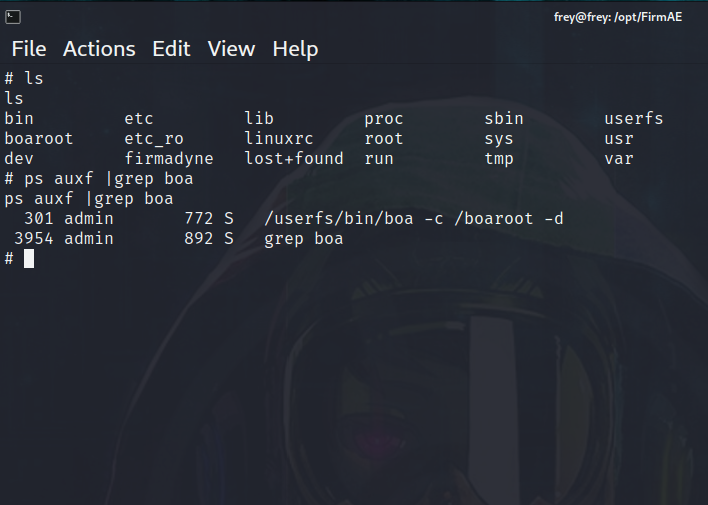

1. ps auxf |grep boa
As it suggests Boa seems to use the config under the /boaroot and is being executed with the flag of -d which suggests that it instructs Boa not to fork itself (non-daemonize). Taking a look at the boa configuration we can see that the basic Authorization is being parsed via /etc/passwd
# Auth: HTTP Basic authorization. Format is "Auth <Directory> <PasswdFile>".
# Password file should be readable _ONLY_ by root or trusted user(s). This file
# is opened before boa gives out privs.
# Example: Auth /secret /var/www/secret.passwd
#Auth / /etc/passwd
Manipulating Basic Authentication Mechanism
Viewing the contents of /etc/passwd clearly states that there’s a user called admin which has a valid /bin/sh shell and permissions as UID 0 which leads to root permission access. Here’s the output of the /etc/passwd
admin:$1$$UwJbejuDC6tr4MjtAZGfV0:0:0:root:/:/bin/sh
After hours of bashing my head around trying to crack the salted MD5 password, i thought why would i try to crack it when i can instead re-generate a new password for the user admin without knowing his old password; Remember i have root permissions so changing it is easy.

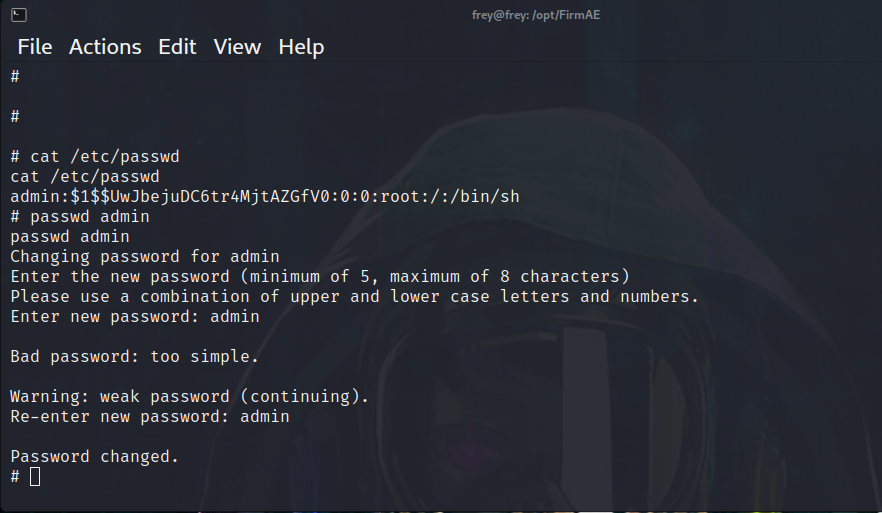

Let’s change the password by executing the below commands :
1. passwd admin
2. Input a new password (used admin as password from my side)
3. Re-enter the password for validation
Now recaping back, we know Boa http server parses the basic authentication based on the /etc/passwd. Previously we didn’t know the password, but now we do. Let’s see if Boa re-checked the /etc/passwd and refreshed his configuration with our newly created password, so let’s go back to the router Web Panel and input the username and password

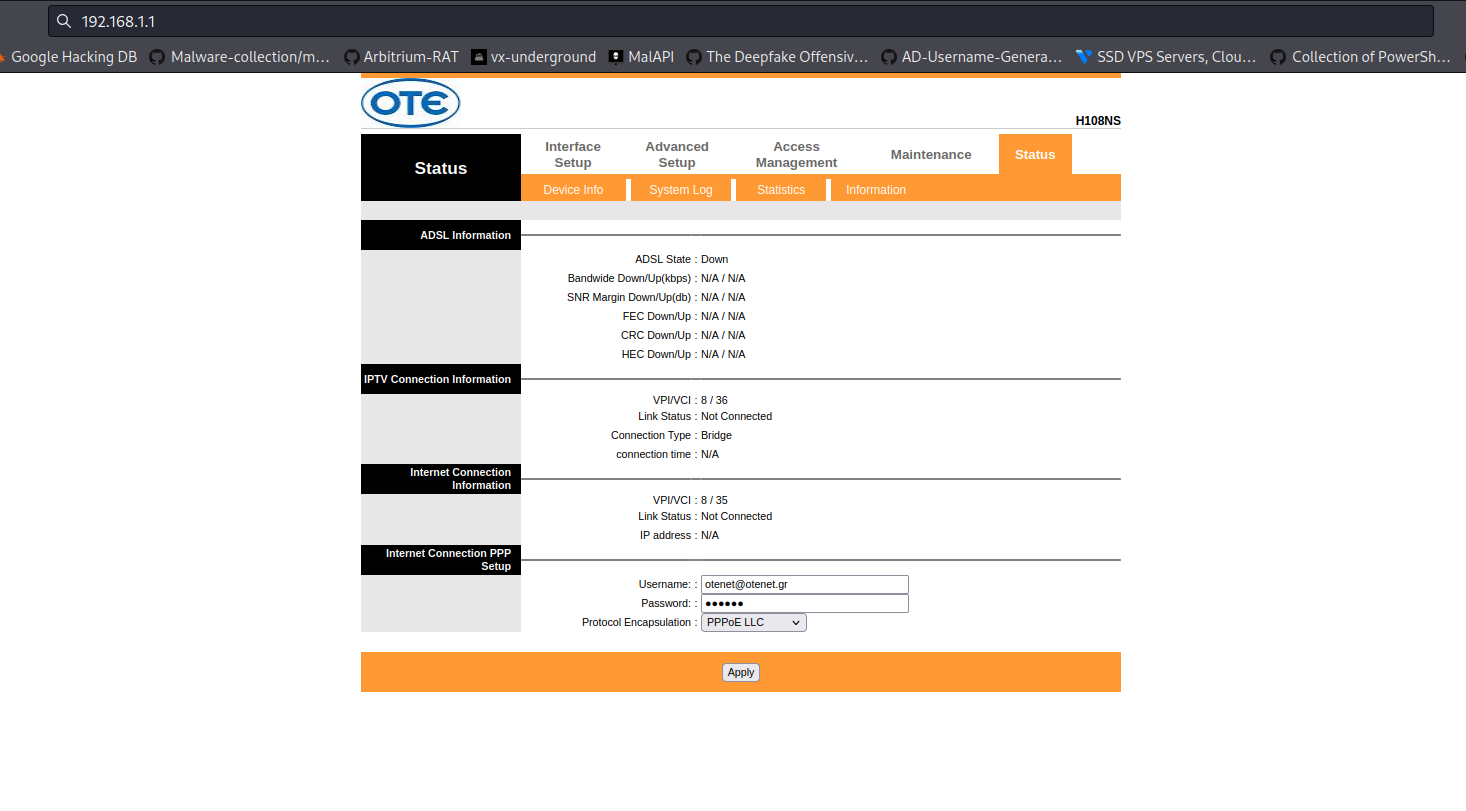

And just like that we’re inside the router web panel. Neat stuff hu?
Keynotes
- Always perform Dynamic / Static analysis on the firmware beforehand
- Taking a look around and list current proccesses may give you a good insight on how the underlying system works
- Thinking outside of the box and tinkering with software mechanisms when it’s necessary
Summary
We’ve successfully emulated our router firmware using out of the box tools, performed dynamic analysis inside the emulated running state of the firmware. Thinked outside of the box techniques and applied them to tinker with mechanisms and finally getting access inside the Router Web Portal. On Part[ 3 ] we will be talking on how we can find and analyse vulnerabilities or who knows fuzzing for some Bofs too;
